What is OEM number 26-10-7-565-103 and which part does it identify?

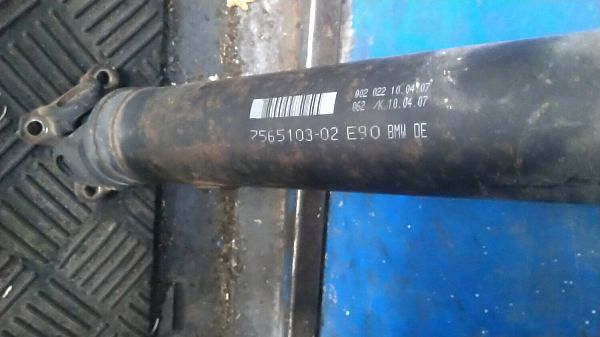

OEM number 26-10-7-565-103 identifies the propeller shaft for the BMW 3 Series fifth generation, encompassing the E90 Saloon and E91 Touring body styles produced between 2005 and 2012. The shaft is positioned at the rear axle and is a two-piece assembly incorporating a centre bearing and rubber flex disc joints at each end; it applies specifically to xDrive (all-wheel drive) variants and must not be confused with rear-wheel-drive propshaft assemblies carrying different OEM numbers. Also referred to as a propshaft or cardan shaft, both terms describe the same rotating torque-transmitting assembly between the gearbox and rear differential. A cross-reference number of 26107531307 has been recorded for this assembly. OEM number 26-10-7-565-103 may fit additional vehicle models not listed here — always verify against the OEM number on your existing part or with a VIN-based lookup.

Does OEM number 26-10-7-565-103 fit my vehicle?

OEM number 26-10-7-565-103 fits the BMW 3 Series (E90 Saloon, E91 Touring), built between 2005 and 2012, in xDrive all-wheel drive configurations. Fitment is governed by the drivetrain layout (xDrive only), as the two-piece propshaft configuration and overall length of approximately 1,605–1,610 mm are specific to the all-wheel drive driveline; rear-wheel-drive variants of the same generation use a different propeller shaft and must not use this part.

The following xDrive variants are associated with OEM number 26-10-7-565-103 based on sourcing and parts-catalogue data:

Cross-reference data also associates OEM number 26-10-7-565-103 with the BMW 3 Series E90 318i (N46 B20 B, 95 kW, 2005–2007); however, the standard 318i of that period was configured as rear-wheel drive and would not ordinarily use an xDrive propeller shaft — verify the printed number on your existing part before ordering.

OEM number 26-10-7-565-103 may fit additional vehicle models not listed here. Always verify by checking the OEM number printed on your existing part or by using a VIN-based parts lookup.

Fits:     BMW 3 Series E90 Saloon 320d xDrive (N47 D20 C), 2010–2011, xDrive (AWD) only
          BMW 3 Series E91 Touring 320i (N46 B20 B / N46 B20 C), 2005–2012, xDrive (AWD) only
          Rear-axle propeller shaft position, two-piece assembly with centre bearing

Does not fit: Rear-wheel-drive (RWD) variants of the BMW E90 / E91 3 Series — a different
              propeller shaft OEM number is required for non-xDrive models

How is OEM number 26-10-7-565-103 installed?

The propeller shaft is a driveline component requiring careful installation and a post-fit drivetrain check. No electronic coding is required, but the following procedure-specific requirements apply.

1. Raise the vehicle on an approved lift and support the gearbox and rear differential with transmission jacks before unbolting the shaft.
2. Mark the orientation of both flex disc flanges relative to the gearbox output flange and differential input flange before removal, to preserve driveline balance on reassembly.
3. Torque all flange fasteners to the manufacturer-specified values; under-torquing the flex disc bolts is a common cause of premature vibration and disc failure.
4. Inspect the centre bearing mount and rubber carrier for damage; replace the carrier if cracked or deformed, as a worn carrier introduces vibration under load.
5. After refitting, carry out a road test across the full speed range and listen for any rotational vibration, humming, or clonking under load and overrun.

When should OEM number 26-10-7-565-103 be replaced?

Replacement triggers

• Vibration or shuddering felt through the floor or gear-lever at specific road speeds, typically between 80 km/h and 130 km/h, that does not vary with tyre rotation.
• Audible clonking or knocking when selecting drive or reverse, indicating worn or cracked flex disc joints.
• Grease contamination visible on the underside of the vehicle near the propeller shaft, caused by a split centre bearing seal or failed universal joint.
• Humming or droning noise that increases with vehicle speed and changes character under load compared with overrun.
• Perceptible rotational play or axial movement when the shaft is rocked by hand with the vehicle raised and the transmission in neutral, indicating centre bearing or flex disc wear.
• Visible cracking, splitting, or separation of the rubber flex disc elements at either end of the shaft.

Typical lifespan

Propeller shafts on the BMW E90/E91 platform typically last 120,000–200,000 km under normal conditions; however, xDrive variants subject to frequent all-wheel-drive engagement, heavy towing, or sustained high-speed motorway use may reach end of life earlier. The centre bearing and flex discs are the most common wear points and may require replacement independently before the shaft tubes themselves are condemned.

We used AI to help write this text. We regularly check the information - but cannot guarantee that all data is accurate.
